wdf01000.sys latencymon подскажите (1 онлайн

evgeniydeluxe

New Member
14 Июл 2022
2
0
1
35

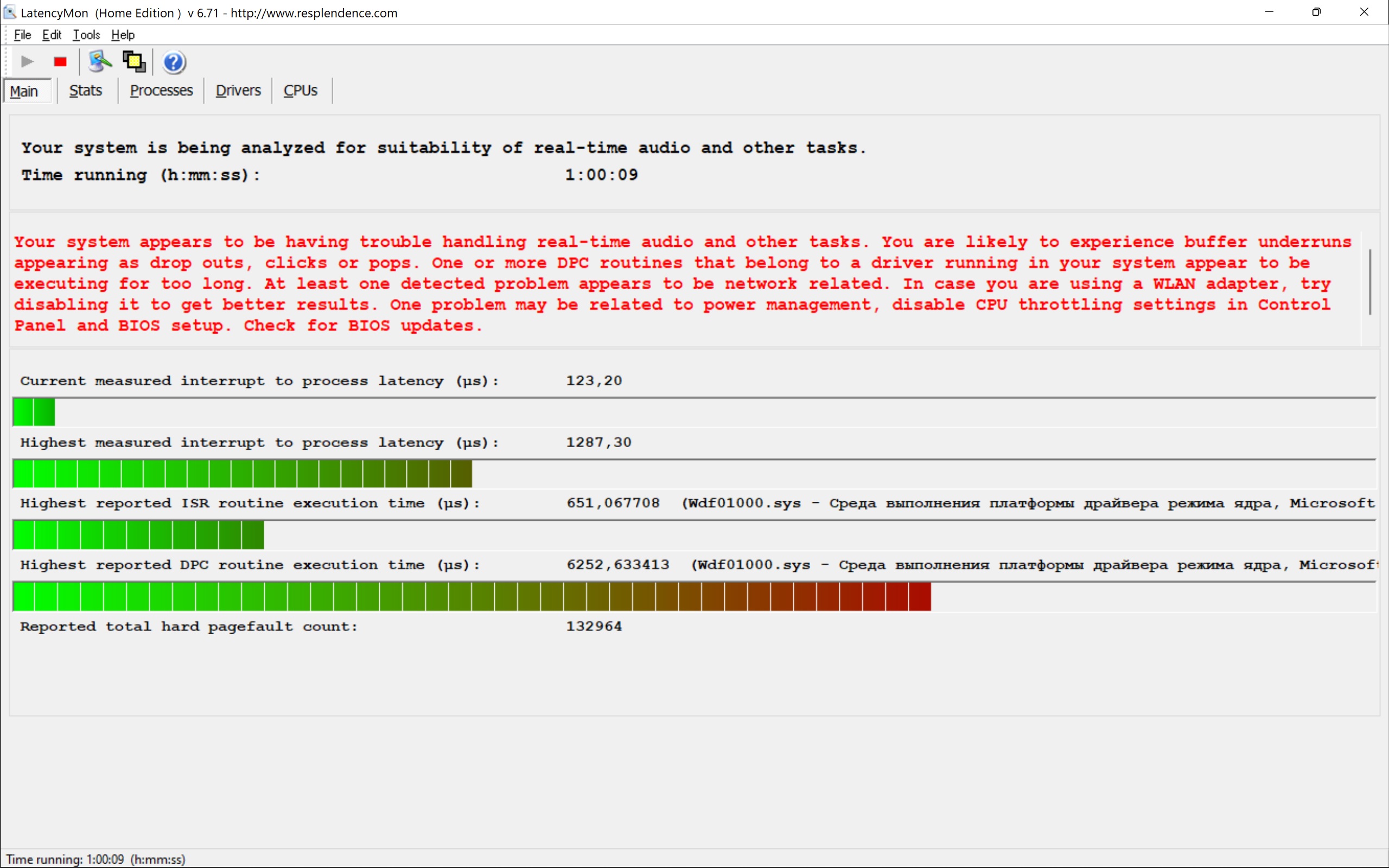

Всем привет, подскажите, не могу разобраться почему такая задержка, ноут новый, windows 11 стоит но в программе пишет 10 ка почему то, звук похрустывает время от времени в recordbox задержка не помогает.

218282
218283


evgeniydeluxe

New Member
14 Июл 2022
2
0
1
35
Computer name: DESKTOP-N248HJE
OS version: Windows 10 , 10.0, build: 22000 (x64)
Hardware: Redmi Book Pro 14 2022, TIMI, TM2105
CPU: GenuineIntel 12th Gen Intel(R) Core(TM) i5-12450H
Logical processors: 12
Processor groups: 1
RAM: 16091 MB total


_________________________________________________________________________________________________________
CPU SPEED
_________________________________________________________________________________________________________
Reported CPU speed: 2496 MHz

Note: reported execution times may be calculated based on a fixed reported CPU speed. Disable variable speed settings like Intel Speed Step and AMD Cool N Quiet in the BIOS setup for more accurate results.

WARNING: the CPU speed that was measured is only a fraction of the CPU speed reported. Your CPUs may be throttled back due to variable speed settings and thermal issues. It is suggested that you run a utility which reports your actual CPU frequency and temperature.



_________________________________________________________________________________________________________
MEASURED INTERRUPT TO USER PROCESS LATENCIES
_________________________________________________________________________________________________________
The interrupt to process latency reflects the measured interval that a usermode process needed to respond to a hardware request from the moment the interrupt service routine started execution. This includes the scheduling and execution of a DPC routine, the signaling of an event and the waking up of a usermode thread from an idle wait state in response to that event.

Highest measured interrupt to process latency (µs): 1287,30
Average measured interrupt to process latency (µs): 22,706131

Highest measured interrupt to DPC latency (µs): 1265,0
Average measured interrupt to DPC latency (µs): 10,451981


_________________________________________________________________________________________________________
REPORTED ISRs
_________________________________________________________________________________________________________
Interrupt service routines are routines installed by the OS and device drivers that execute in response to a hardware interrupt signal.

Highest ISR routine execution time (µs): 651,067708
Driver with highest ISR routine execution time: Wdf01000.sys - Среда выполнения платформы драйвера режима ядра, Microsoft Corporation

Highest reported total ISR routine time (%): 0,016866
Driver with highest ISR total time: Wdf01000.sys - Среда выполнения платформы драйвера режима ядра, Microsoft Corporation

Total time spent in ISRs (%) 0,016911

ISR count (execution time <250 µs): 160275
ISR count (execution time 250-500 µs): 0
ISR count (execution time 500-999 µs): 1359
ISR count (execution time 1000-1999 µs): 0
ISR count (execution time 2000-3999 µs): 0
ISR count (execution time >=4000 µs): 0


_________________________________________________________________________________________________________
REPORTED DPCs
_________________________________________________________________________________________________________
DPC routines are part of the interrupt servicing dispatch mechanism and disable the possibility for a process to utilize the CPU while it is interrupted until the DPC has finished execution.

Highest DPC routine execution time (µs): 6252,633413
Driver with highest DPC routine execution time: Wdf01000.sys - Среда выполнения платформы драйвера режима ядра, Microsoft Corporation

Highest reported total DPC routine time (%): 0,018066
Driver with highest DPC total execution time: Wdf01000.sys - Среда выполнения платформы драйвера режима ядра, Microsoft Corporation

Total time spent in DPCs (%) 0,080677

DPC count (execution time <250 µs): 4695476
DPC count (execution time 250-500 µs): 0
DPC count (execution time 500-999 µs): 4518
DPC count (execution time 1000-1999 µs): 16
DPC count (execution time 2000-3999 µs): 0
DPC count (execution time >=4000 µs): 0


_________________________________________________________________________________________________________
REPORTED HARD PAGEFAULTS
_________________________________________________________________________________________________________
Hard pagefaults are events that get triggered by making use of virtual memory that is not resident in RAM but backed by a memory mapped file on disk. The process of resolving the hard pagefault requires reading in the memory from disk while the process is interrupted and blocked from execution.

NOTE: some processes were hit by hard pagefaults. If these were programs producing audio, they are likely to interrupt the audio stream resulting in dropouts, clicks and pops. Check the Processes tab to see which programs were hit.

Process with highest pagefault count: msmpeng.exe

Total number of hard pagefaults 133524
Hard pagefault count of hardest hit process: 90710
Number of processes hit: 85


_________________________________________________________________________________________________________
PER CPU DATA
_________________________________________________________________________________________________________
CPU 0 Interrupt cycle time (s): 147,817802
CPU 0 ISR highest execution time (µs): 401,700721
CPU 0 ISR total execution time (s): 4,844526
CPU 0 ISR count: 109206
CPU 0 DPC highest execution time (µs): 6252,633413
CPU 0 DPC total execution time (s): 18,675733
CPU 0 DPC count: 1721418
_________________________________________________________________________________________________________
CPU 1 Interrupt cycle time (s): 101,456369
CPU 1 ISR highest execution time (µs): 637,31250
CPU 1 ISR total execution time (s): 1,180948
CPU 1 ISR count: 20314
CPU 1 DPC highest execution time (µs): 1151,611378
CPU 1 DPC total execution time (s): 4,766107
CPU 1 DPC count: 384633
_________________________________________________________________________________________________________
CPU 2 Interrupt cycle time (s): 103,190575
CPU 2 ISR highest execution time (µs): 645,689904
CPU 2 ISR total execution time (s): 0,531266
CPU 2 ISR count: 11010
CPU 2 DPC highest execution time (µs): 1340,870593
CPU 2 DPC total execution time (s): 3,840101
CPU 2 DPC count: 745636
_________________________________________________________________________________________________________
CPU 3 Interrupt cycle time (s): 97,651751
CPU 3 ISR highest execution time (µs): 651,067708
CPU 3 ISR total execution time (s): 0,441639
CPU 3 ISR count: 9158
CPU 3 DPC highest execution time (µs): 1244,609375
CPU 3 DPC total execution time (s): 3,018926
CPU 3 DPC count: 506967
_________________________________________________________________________________________________________
CPU 4 Interrupt cycle time (s): 77,688575
CPU 4 ISR highest execution time (µs): 579,401042
CPU 4 ISR total execution time (s): 0,215570
CPU 4 ISR count: 5430
CPU 4 DPC highest execution time (µs): 1072,259215
CPU 4 DPC total execution time (s): 2,134731
CPU 4 DPC count: 445293
_________________________________________________________________________________________________________
CPU 5 Interrupt cycle time (s): 75,771468
CPU 5 ISR highest execution time (µs): 632,470353
CPU 5 ISR total execution time (s): 0,263884
CPU 5 ISR count: 5812
CPU 5 DPC highest execution time (µs): 890,984776
CPU 5 DPC total execution time (s): 1,464738
CPU 5 DPC count: 287701
_________________________________________________________________________________________________________
CPU 6 Interrupt cycle time (s): 71,522841
CPU 6 ISR highest execution time (µs): 401,996394
CPU 6 ISR total execution time (s): 0,008977
CPU 6 ISR count: 357
CPU 6 DPC highest execution time (µs): 1167,092949
CPU 6 DPC total execution time (s): 1,037097
CPU 6 DPC count: 271403
_________________________________________________________________________________________________________
CPU 7 Interrupt cycle time (s): 69,398812
CPU 7 ISR highest execution time (µs): 566,881410
CPU 7 ISR total execution time (s): 0,012959
CPU 7 ISR count: 235
CPU 7 DPC highest execution time (µs): 1774,887420
CPU 7 DPC total execution time (s): 0,565892
CPU 7 DPC count: 215620
_________________________________________________________________________________________________________
CPU 8 Interrupt cycle time (s): 28,540566
CPU 8 ISR highest execution time (µs): 28,037260
CPU 8 ISR total execution time (s): 0,000528
CPU 8 ISR count: 73
CPU 8 DPC highest execution time (µs): 279,553285
CPU 8 DPC total execution time (s): 0,046126
CPU 8 DPC count: 12134
_________________________________________________________________________________________________________
CPU 9 Interrupt cycle time (s): 26,331446
CPU 9 ISR highest execution time (µs): 9,124599
CPU 9 ISR total execution time (s): 0,000024
CPU 9 ISR count: 5
CPU 9 DPC highest execution time (µs): 409,460337
CPU 9 DPC total execution time (s): 0,150074
CPU 9 DPC count: 84903
_________________________________________________________________________________________________________
CPU 10 Interrupt cycle time (s): 28,742657
CPU 10 ISR highest execution time (µs): 10,826122
CPU 10 ISR total execution time (s): 0,000093
CPU 10 ISR count: 17
CPU 10 DPC highest execution time (µs): 640,940705
CPU 10 DPC total execution time (s): 0,047529
CPU 10 DPC count: 12899
_________________________________________________________________________________________________________
CPU 11 Interrupt cycle time (s): 26,365113
CPU 11 ISR highest execution time (µs): 10,130208
CPU 11 ISR total execution time (s): 0,000083
CPU 11 ISR count: 17
CPU 11 DPC highest execution time (µs): 662,596955
CPU 11 DPC total execution time (s): 0,036009
CPU 11 DPC count: 11404
