Specifications
Main Specifications
CPU:
2 x ARM CPU STM32H743VIT6
Frequency 399.360 MHz
Digital Audio Processing:
32 bit / float
Sample Rate:
48 kHz
Wave memory:
Unlimited – depending on the size of SD card used
SD Card slot:
SD Cards 2.7–3.6V Push/Pull
Supported SD cards:
All models 16MB – 128GB
Audio file format:
WAV / 48000Hz / 16 bit / Mono or Stereo
Sampling method:
Full Length – entire length of the sample Not use Loop Point Single WAV file for each note
Multisamples:
10 000 multisamples in a bank 20 multisamples for every program
Multisample files:
128 WAV files, single file for each note
Maximum polyphony:
Total 64 Voices*
*16 mono or 8 stereo voices for Uppers,(depends on the mode of the oscillator) + 48 mono voices from Help Synth.
Oscillator mode:
Normal POLY, Bass MODE, Mono RETRIG, Mono LEGATO, Mono+PRT CZ, Mono+PRT DX, Ac Bouzouki, LPC Gibson, Ethno Bouzouki*, Mono+PRT KG, MonoPRT JS1, MonoPRT JS2, StradivariV, Kempa GROUP*, Strad Vio 2, JS TenorSax, JS Alt Sax, JS Clarinet, JS Bouzouki, JS Turkish Oud*, JS Ethno Violin*.
* new for sampler 2
Sounds:
10 000 sounds for one bank
Presets / Combinations:
10 000 preset/combinations for one bank
Scale / comma:
Resolution +/- 16 units per semitone One USER scale for each preset, plus 6 separate programmable global scales with option for instant recall at any time. There is ability to control the scales via MIDI directly from a synthesizer (with Sysex messages).
Terca:
13 presets for terca plus modes for scanning tercas. Ability for terca with a timbre, that differs from the basic timbre. There is a possibility to control the tercas via MIDI directly from a synthesizer (with CC12 and CC13).
Effects:
4 Insert effects for every upper + 3 band EQ + 2 master effects.
DAC:
Texas Instruments PCM1791A Sampling frequency 48 kHz Audio data 32bit
Operational amplifiers:
NE5532P
Master volume:
Digitally controlled, ALPS potentiometer

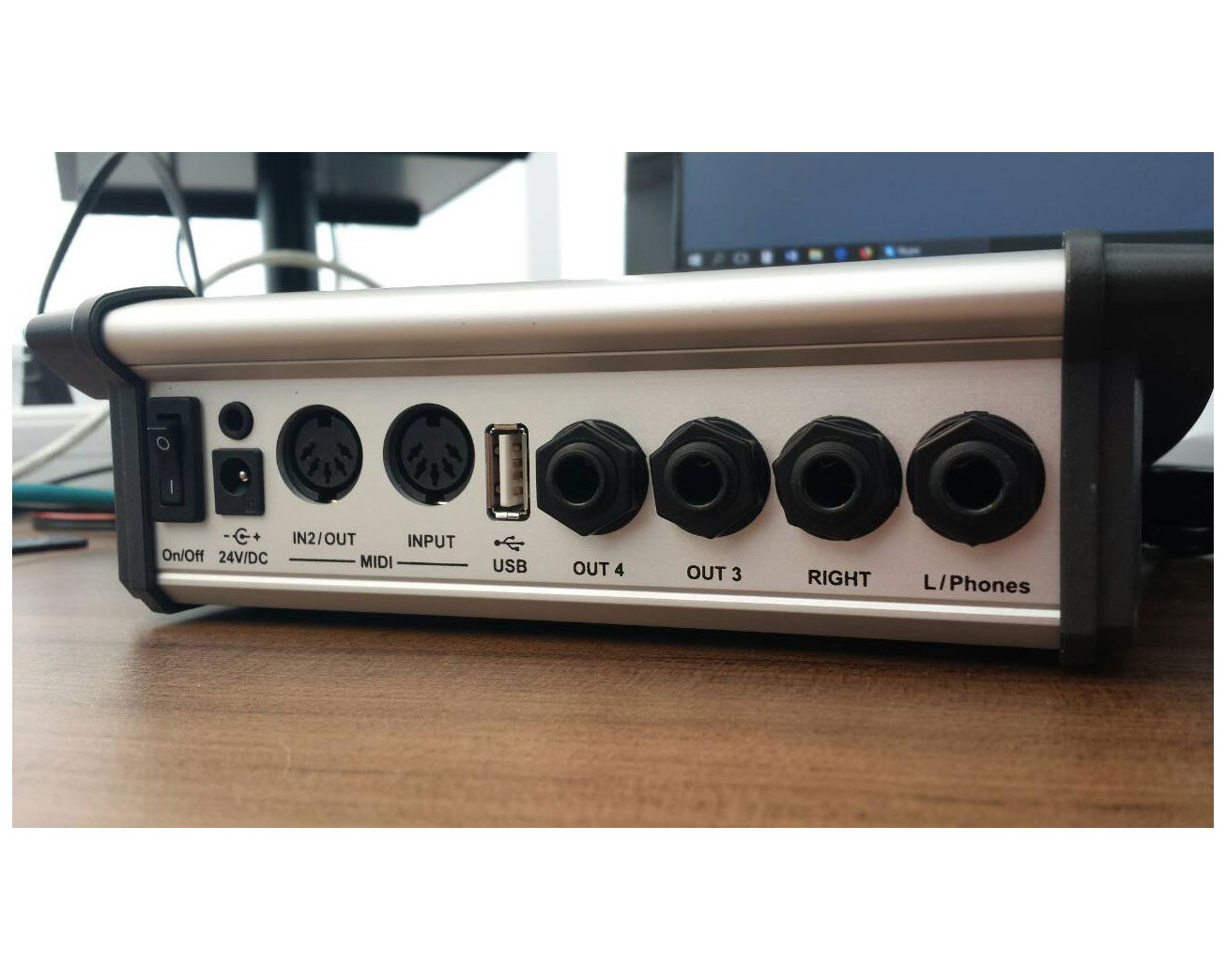

Audio outs:
4 separate mono 1/4 TRS connectors,
mono, unbalanced, rear panel
Impedance 140 Ω
Signal-to-noise ratio 112 dB
Stereo crosstalk < -80 dBu/1 kHz
Maximum output level +20 dBu
MIDI interface:
2 x Standard 5-pin DIN connectors
One is always MIDI IN, ungrounded through opto-isolator Seccond is freely configured as MIDI In2, MIDI OUT or MIDI THRU
USB interface:
1 x USB HOST connectors
Accept Mass Storage Device or MIDI Host devices
Remap of note velocity:
Yes, using 16 different velocity curves, plus the limitation and mixing of 2 curves.
Remap of note velocity:
Yes, using 16 different velocity curves, plus the limitation and mixing of 2 curves.
MIDI Analyzer:
Yes, shows the 6 most recent MIDI events
Sysex Analyzer:
Yes, shows up to 128 Sysex bytes
Input for Analog Controller:
3.5mm stereo jack Software configuration of the power pins Power +5V Direct current (DC) Short circuit protection Input signal level from 0 to +5V Software controlled Pull Up resistor 2.2 kOhm Hardware analog amplifier with software-controlled GAIN and OFFSET
MIDI converter from Analog IN:
Ability to generate up to 3 different MIDI messages simultaneously, each with independent parameters. Send up to 3 different MIDI channels simultaneously. Messages are sent via MIDI OUT.
Ability to power external devices:
(Through the EXTENSION port)
+5V / 300 mA
+3.3V / 100 mA
Display:
320 x 240 pixels color display with LED backlight and capacetive Touch Screen
LED Indicators:
MIDI In1, MIDI In2, Audio CLIP, SD card, Breath Controoler, Scala Status, Scala HOLD, Terca status, Terca HOLD, Terca Special Note, Transpose UP, Transpose Down, LIST Mode Status
Package contents:
Sampler, 64GB SD Card, power adapter, MIDI cable, Warranty Card, Quick Start
Optional items (sold separately):
Breath Controller (Analog Version), second MIDI cable
Operating conditions:
Temperature from 0° to 40° C
Humidity < 90 %
Power Supply Adapter:
Input: AC 90V to 240 Volts / 50-60Hz
Output: 24V DC, 0.500A, Center +
Build-in fuse:
500mA
Power consumption:
<12 W
Warranty:
Standard Juzisound LIFE TIME warranty!* More...
Dimensions:
147 x 129 x 57 mm
Weight:
1.000 kg
