desc:a handful of interpolation algorithms
/*
Interpolation Algorithms Library
v 1.1
For fractional delays, interpolation, etc. The bundled plugin lets you hear the
difference between them when applied to a Karplus-Strong "pluck".
These functions are standardized to assume that we are interpolating between
x1 and x2, and mu is the decimal point in between. For example, using linear
interpolation - if x1 = 1, x2 = 2, and mu = 0.5, then the interpolated value
would be 1.5.
xo .......... x1 ....[interpolating here]...... x2 .......... x3
Here are a list of the different functions as well as brief notes.
Non-Recursive

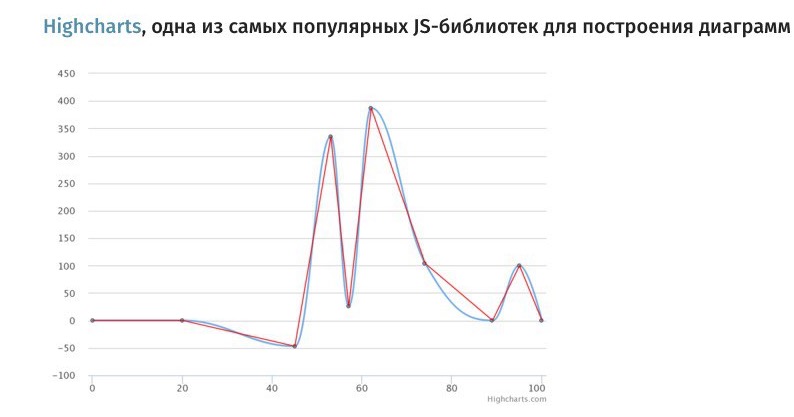

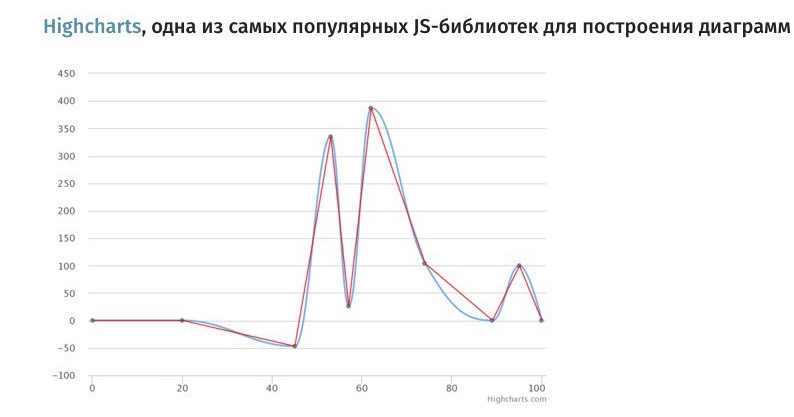

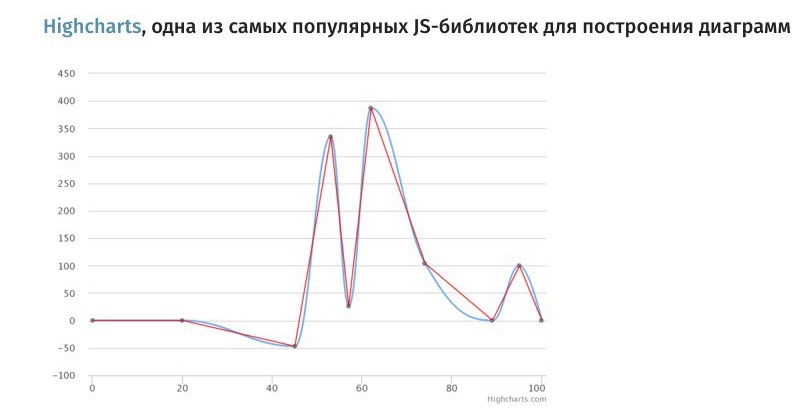

interpolate_linear(x1,x2,mu)
The "straight line" approximation. Most common, easiest to compute.
interpolate_cosine(x1,x2,mu)
interpolate_smooth(x1,x2,mu)
These use curves (cosine and polynomial, respectively) instead of straight
lines. The endpoints are still discontinuous, but the curves add some
nonlinearity and color. "Smooth" is a polynomial alternative to "Cosine".
interpolate_hermite(x0,x1,x2,x3,mu)
4-point algorithm using Hermite spline. Computationally expensive, but I
really like how it sounds.
IIR
interpolate_allpass_init(mu)
interpolate_allpass(in)
First order Thiran all-pass filter. When they talk about an allpass filter
used in the delay line, this is the one they're talking about. The init
function needs to be called first. This is a recursive algorithm.
interpolate_allpass2_init(mu)
interpolate_allpass2(in)
Second order Thiran all-pass filter. Also a recursive algorithm.
*** Special note - this must have a delay greater than 1. ***
If you check the example file I bundled with this library, I pull four consecutive
values (x0 through x3) from the delay line and interpolate between x1 and x2. To
make this function work correctly, simply interpolate from x0 and add one to your
fractional delay value (mu).
interpolate_rbj_ap_init(mu)
interpolate_rbj_ap(in)
RBJ 2nd order all-pass IIR filter.
FIR
interpolate_fir_init(mu)
interpolate_fir(in)
3-tap fractional delay filter. I don't have a proper name for it, so I'm
just calling it a generic FIR filter. See below for the site that I got it
from if you care.
interpolate_lagrange2_init(mu)
interpolate_lagrange2(in)
2nd order FIR Lagrange interpolation.
interpolate_lagrange3_init(mu)
interpolate_lagrange3(in)
3rd order FIR Lagrange interpolation. This is another funny one - the delay needs
to be greater than 1. Again, as with the 2nd order Thiran all-pass, take one
sample sooner and add one to the fractional delay value ("mu").
And that's that. There's more that I wanted to do, but either had trouble deriving them,
finding code examples, or had problems implementing them. If I figure any others out,
I'll be updating this file at the Reaper stash.
Any questions, comments, code corrections, or suggestions on how to implement other
interpolation algorithms, reach me in the Reaper JS forum.
http://forum.cockos.com/forumdisplay.php?f=3
~ Sault
2-16-14
*/
@init
// from http://paulbourke.net/miscellaneous/interpolation/
function interpolate_linear(x1,x2,mu)
instance(out)
(
out = x1*(1-mu) + x2*mu;
);
function interpolate_cosine(x1,x2,mu)
instance(mu2,out)
(
mu2 = (1 - cos(mu * $pi))/2;
out = x1*(1-mu2) + x2*mu2;
);
function interpolate_smooth(x1,x2,mu)
instance(out)
(
mu = mu * mu * (3 - (2 * mu));
out = x1 + ((x2 - x1) * mu);
);
// from www.xoxos.net/sem/dsp2public.pdf
// xoxos' formula has tension and bias set to 0
function interpolate_hermite(x0,x1,x2,x3,mu)
instance(a,b,c,d,out)
(
a = ((3 * (x1- x2)) - x0 + x3) * 0.5;
b = x2 + x2 + x0 - (5*x1 + x3) * 0.5;
c = (x2 - x0) * 0.5;
d = mu;
out = ((a*d+b)*d+c)*d+x1;
);
// Thiran first-order all-pass
function interpolate_allpass_init(d)
instance(a,x1,y1)
(
a = (1-d)/(1+d);
a = min(max(a,0),1);
x1 = y1 = 0;
);
function interpolate_allpass(in)
instance(out,x1,y1,a)
(
out = a * in + x1 - a * y1;
x1 = in;
y1 = out;
out;
);
// Thiran second-order all-pass
//
// from "Alias-Free Virtual Analog Oscillators Using a Feedback Delay Loop"
// http://dafx09.como.polimi.it/proceedings/papers/paper_72.pdf
function interpolate_allpass2_init(d)
(
this.a1 = -(d-2)/(d+1);
this.a2 = ((d-1)*(d-2))/((d+1)*(d+2));
this.x1 = this.x2 = this.y1 = this.y2 = 0;
);
function interpolate_allpass2(in)
instance(out,y1,y2,x1,x2,a1,a2)
(
out = a2*in + a1*x1 + x2;
out -= (a1*y1 + a2*y2);
y2 = y1;
y1 = out;
x2 = x1;
x1 = in;
out;
);
// from RBJ's Audio Cookbook
function interpolate_rbj_ap_init(frac)
instance(w0, cosw0, sinw0, alpha, a1)
(
w0 = 2 * $pi * frac/srate;
cosw0 = cos(w0);
sinw0 = sin(w0);
alpha = sinw0 / 2; // setting Q to 1
this.b01 = 1 - alpha;
this.b11 = -2 *cosw0;
this.b21 = 1 + alpha;
this.a01 = 1 + alpha;
this.a11 = -2 * cosw0;
this.a21 = 1 - alpha;
this.b01 /= this.a01;
this.b11 /= this.a01;
this.b21 /= this.a01;
this.a11 /= this.a01;
this.a21 /= this.a01;
this.x11 = this.x21 = 0;
this.y11 = this.y21 = 0;
this.oin = this.in = 0;
);
function interpolate_rbj_ap(in)
instance(oin, out)
(
oin = in;
out = this.b01 * in + this.b11 * this.x11 + this.b21 * this.x21;
out += -this.a11 * this.y11 - this.a21 * this.y21;
this.x21 = this.x11;
this.x11 = this.oin;
this.y21 = this.y11;
this.y11 = out;
out;
);
// from http://www.cs.nuim.ie/~matthewh/VST.html
function interpolate_fir_init(frac)
instance(b0,b1,b2,t,d,g,a)
(
d = frac;
t = (1-d)/(1+d);
g = 10^(-6/(srate*1)); // 1 = "tau"
b0 = 0.5 * g * t;
b1 = 0.5 * (t + 1);
b2 = 0.5 * g;
a = t;
);
function interpolate_fir(in)
instance(out,x1,x2)
(
out = this.b0 * in + x1;
x1 = this.b1 * in + x2 - this.a * out;
x2 = this.b2 * in;
out;
);
// from http://www.acoustics.hut.fi/~vpv/publications/vesan_vaitos/ch3_pt2_lagrange.pdf
// 2nd order Lagrange interpolation
function interpolate_lagrange2_init(frac)
instance(h0,h1,h2)
(
h0 = 0.5 * (frac-1) * (frac-2);
h1 = -frac * (frac-2);
h2 = 0.5 * frac * (frac-1);
);
function interpolate_lagrange2(in)
instance(out,x1,x2)
(
out = this.h0 * in + this.h1 * x1 + this.h2 * x2;
x2 = x1;
x1 = in;
out;
);
// 3rd order Lagrange interpolation
function interpolate_lagrange3_init(frac)
instance(h0,h1,h2,h3)
(
h0 = (frac-1) * (frac-2) * (frac-3)/-6;
h1 = 0.5 * frac * (frac-2) * (frac-3);
h2 = -0.5 * frac * (frac-1) * (frac-3);
h3 = (frac * (frac-1) * (frac-2))/6;
);
function interpolate_lagrange3(in)
instance(out,x1,x2,x3)
(
out = this.h0 * in + this.h1 * x1 + this.h2 * x2 + this.h3 * x3;
x3 = x2;
x2 = x1;
x1 = in;
out;
);
